ContactTrack Camera

ContactTrack Camera

Regular price ¥18,500 JPY
Regular price Sale price ¥18,500 JPY
Sale Sold out
Tax included.

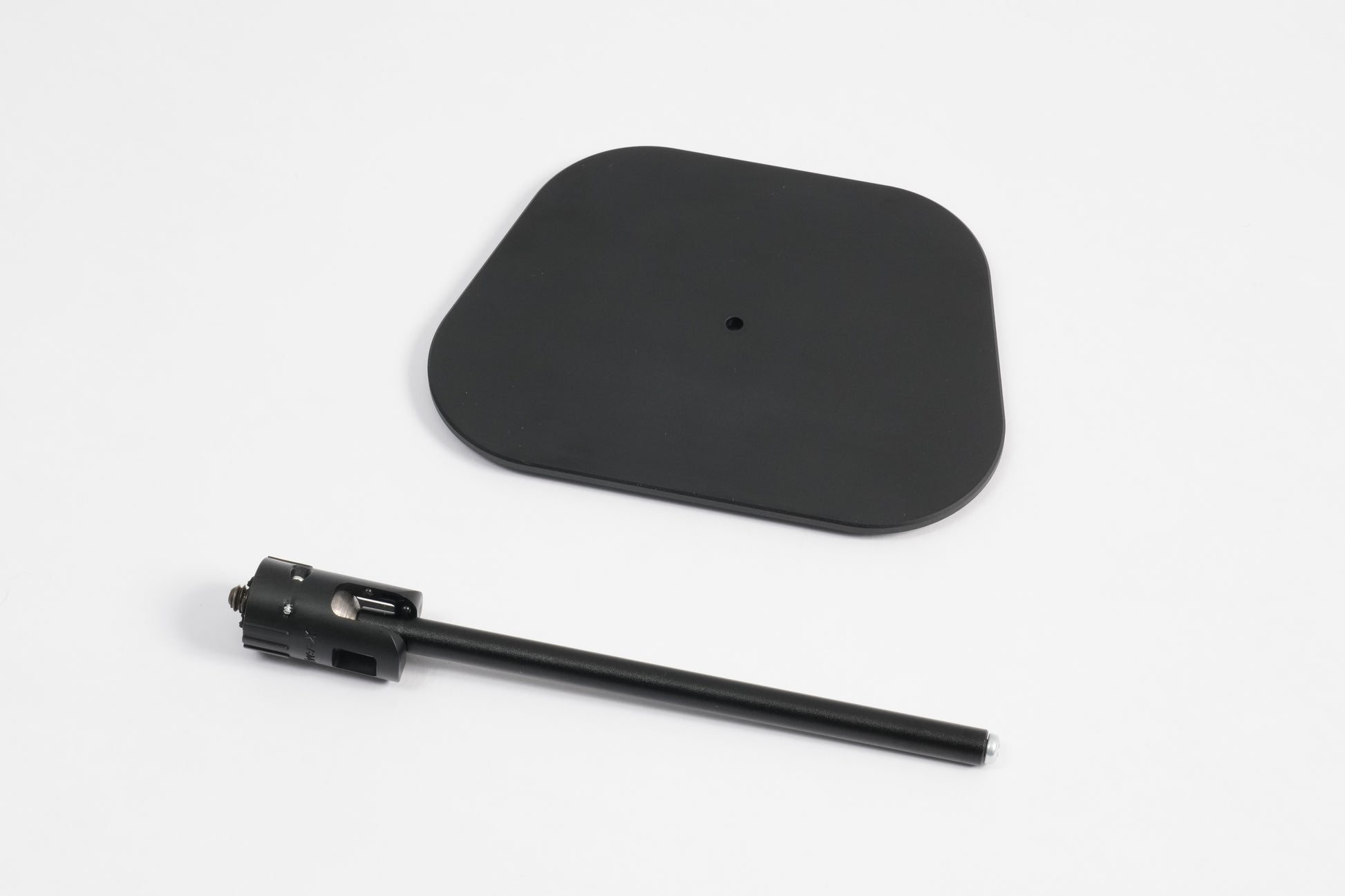

Fixed stand

Contents

  1. ContactTrack Camera x1
  2. USB2.0 cable (4.0m) x1
  3. Warranty
  4. DivingStation ( Installation )

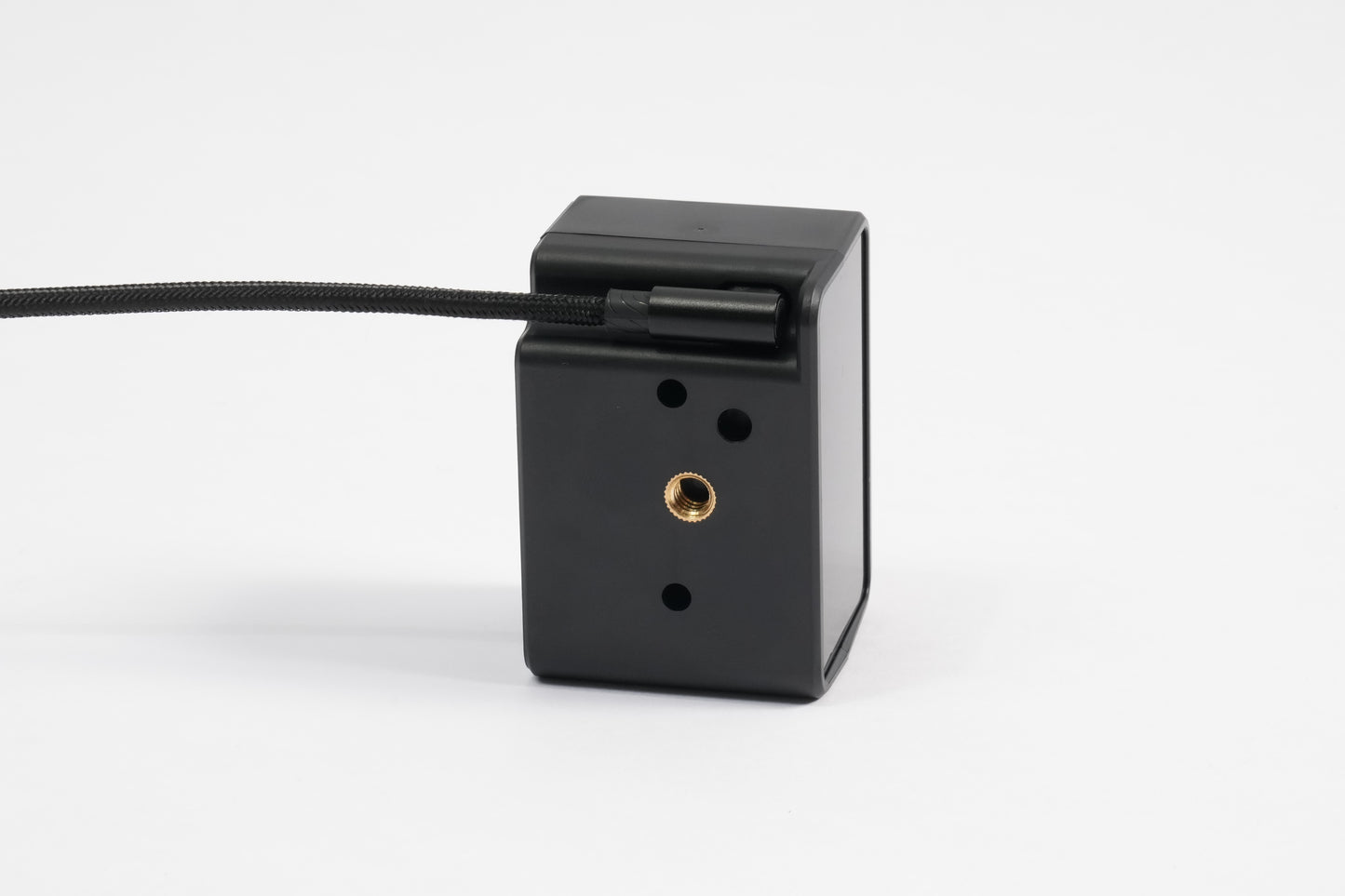

*The camera is equipped with a 1/4 inch screw, allowing it to be attached to a standard clamp or strap.

What is the ContactTrack system?

This is an optical/IMU combined position tracking system.

The main use cases envisioned are full tracking, object tracking, research and development, and interactive content.

Seamlessly switch between optical tracking mode <=> IMU + advanced sensor tracking mode, allowing you to continue tracking with high accuracy even if the tracker is lost from the camera.

While in optical tracking mode, absolute position and rotation can be obtained.

Specifications

How to connect USB Type-C USB2.0
Object Tracking Mode Tracking is possible within a maximum range of approximately 3m with one camera. When optical tracking mode is enabled, tracking is possible with a positional accuracy of ±3mm and a rotational accuracy of ±2°.
Full Body Tracking Mode
Full body tracking possible with a minimum of 2 points (+ space calibration unit). *When wearing VR goggles
Maximum number of connections
Up to 2 trackers per camera
Up to 4 cameras per PC

*The maximum number of connectable devices may increase in the future.
Wireless Communication

Proprietary communication using the 2.4GHz band (dongle is built into the camera)

*A standalone dongle is also under development.

Compatible VR headsets SteamVR compatible headsets * Operation with all headsets is not guaranteed.
Compatible Applications
VRChat, Resonite, VirtualMotionCapture, and other SteamVR applications. * Operation with all SteamVR applications is not guaranteed.

Delivery time

This product is a pre-order product.

Product shipments are scheduled for mid-March 2025 (11th-25th).

*If a delay in shipping is foreseen, we will immediately notify purchasers via email.

*If you purchase multiple products at the same time, the products will be shipped together with the product that has the latest delivery date. Please be aware of this in advance.
